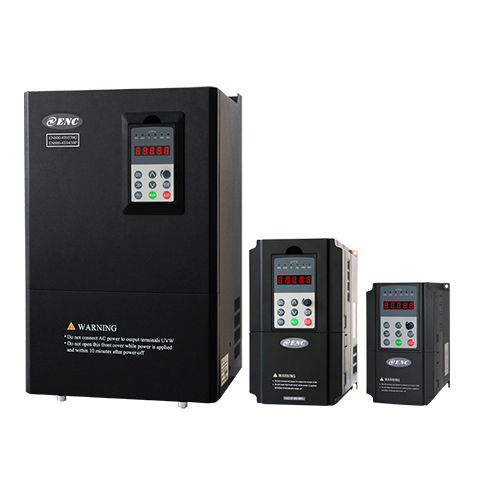

Input

Rated volt.,frequency

1 phase 220V class: 1 phase 220V, 50Hz/60Hz

3 phase 380V class: 3 phase 380V, 50Hz/60Hz

Allowed volt. range

1 phase 220V class: 200~260V

3 phase 380V class: 320~460V

Output

Voltage

0   ～  Input volt

Frequency

0   ～  600Hz

Overload capacity

G type   ：  150% of rated current for 1 minute

P type   ：  120% of rated current for 1 minute.

Control performance

Control mode

Vector control  (Without PG)

Vector control  (with PG)

Open-loop V/F control

Torque control  (without PG)

Torque control  (with PG)

Speed stability

accuracy

± 0.5% rated synchronous speed   （  without PG vector control)

± 0.1% rated synchronous speed   （  with PG vector control)   ；

± 1% rated synchronous speed   （  V/F control   ）；

Speed range

1   ：  2000   （  with PG vector control   ）；

1   ：  100   （  without PG vector control   ）；

1   ：  50   （  V/F control   ）；

Start-up torque

1.0Hz   ：  150% rated torque   （  V/F control   ）；

0.5Hz   ：  150% rated torque(without PG vector control)   ；

0Hz   ：  180% rated torque   （  with PG vector control   ）；

Speed fluctuation

± 0.3% rated synchronous speed   （  without PG vector control ）；

± 0.1% rated synchronous speed   （  with PG vector control ）；；

Torque control

accuracy

± 10% rated torque   （  without PG vector control   ，  without PG torque control   ）；

± 5%  rated torque   （  with PG vector control, with PG torque control   ）。

Torque response

≤ 20ms   （  without PG vector control   ）；

≤ 10ms   （  with PG vector control   ）；

Frequency precision

Digital setted   ：  max.frequency ×± 0.01%   ；

Analog setted   ：  max.frequency ×± 0.5%

Frequency resolution

Analog setting

0.1% of max.frequency

Digital setted precision

0.01Hz

Exterior impulse

0.1% of max. frequency

Torque boost

Automatic torque boost, manual torque boost 0.1   ～  12.0%

V/F curve(volt. frequency characteristic)

Set rated frequency arbitrarily at range of 5   ～  650Hz,can choose constant torque, degressive torque 1,degressive torque 2,degressive torque 3,user defined V/F curve in total 5 kinds of curve

acceleration

and  deceleration curves

2 modes:linear acceleration and deceleration and “ S” acceleration and deceleration; 15 types of acceleration and deceleration time, the time unit is optional(0.01s,0.1s,1s), the max is 1000 minutes

Brake

Power consumption brake

The 15kw power and below 15kw with built-in brake unit,brake resistor added between (+) and PB

The 18.5kw and above 18.5kw can add externally brake unit between (+) and (-) when necessary.

DC brake

Optional start-up and stop,action frequency 0   ～  15Hz,action current 0   ～  100%,action time 0   ～  30.0s

         Jog

JOG frequency range: 0.00 – upper limiting frequency

JOG acceleration/deceleration time: 0.0 – 6000.0s

Multi steps speed running

Multi steps speed operation can be achieved by interior PLC or control terminal. As many as 15sections, which has their own acceleration and deceleration time. The interior PLC supports power down save.

Interior PID controller

Be convenient to make closed-loop system

Automatic energy-saving operation

Optimize automatically V/F curve base on condition of loading, achieving energy-saving operation.

Automatic voltage regulate(AVR)

Automatically keep output voltage constant, when on-grid voltage vary

Automatic current limiting

Automatic current limiting when operation, in case of the malfunction of frequent over current causing trip

carrier modulation

Modulate carrier automatically based on the characteristic of load.

Speed tracking restart

Make the rotating motor smooth start without shocking

Running function

Running order specified channel

Keypad specified, control terminal specified, communication specified, which can be changed by many means

Running frequency specified channel

Main and side specified, realizing a main adjustment and fine control. Digital, analog, impulse, pulse-width, communication specified and other specified can make switch come true

Binding function

Running order channel and frequency specified channel can be bond arbitrarily, change synchronously

Input

and

Output character

Digital input channel

8 digital input (DI) terminals , the max frequency is 1KHZ, one of which support up to 50KHz. The digital terminal can be expanded to 14 terminals.

Analog input channel

2 analog input (AI) terminal, AI1 can choose 4   ～  20mA or 0   ～ 10V as output   ，  AI2 is differential input   ，  4   ～  20mA or -10 ～  10V input is available. The analog terminal can be expanded to 4 terminals

Pulse output channel

Impulse square wave signal output of 0   ～  20KHZ, can realize output of physical parameter such as setting frequency, output frequency etc.

Analog output channel

2 analog signal output terminal, AO1 can be 4~20mA or 0~10V, AO2 can be 4~20mA or 0~10V; through them the inverter can realize output of physical value such as setting frequency, output frequency etc. And can be expanded to 4 channel output. This output analog terminal can be expanded to 4 terminals

Unique feature

Rapid current limit

Limit inverter over current to the greatest degree, making it running reliably

Monopulse control

Suitable for the inverter with one key that controls the inverter on or off, which is simple and reliable.

Fixed length control

Can realize fixed length control

Timing control

Time range: 0.0 – 6500.0 minutes

Virtual terminal

Five groups of virtual DI/Dos can realize simple logic

control.

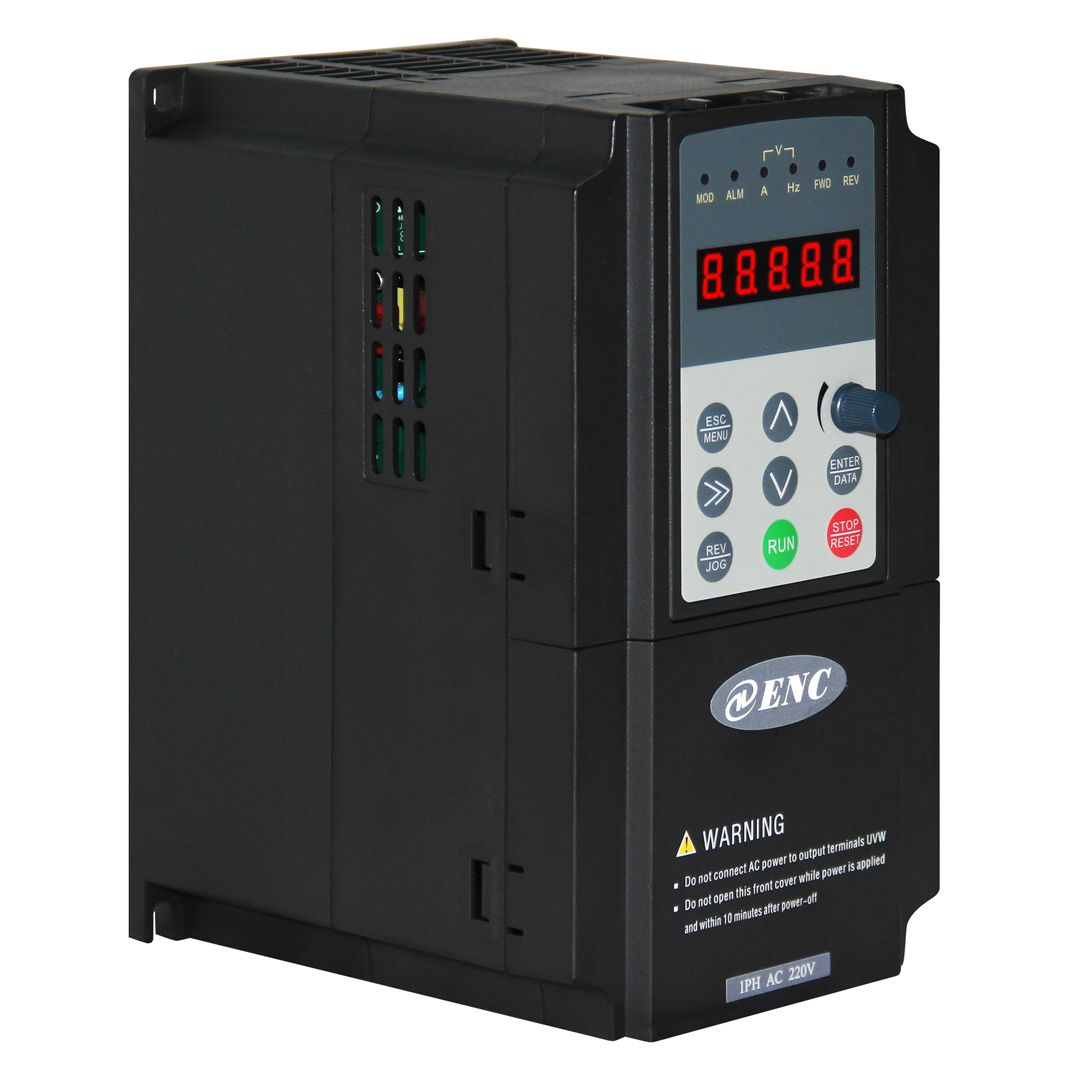

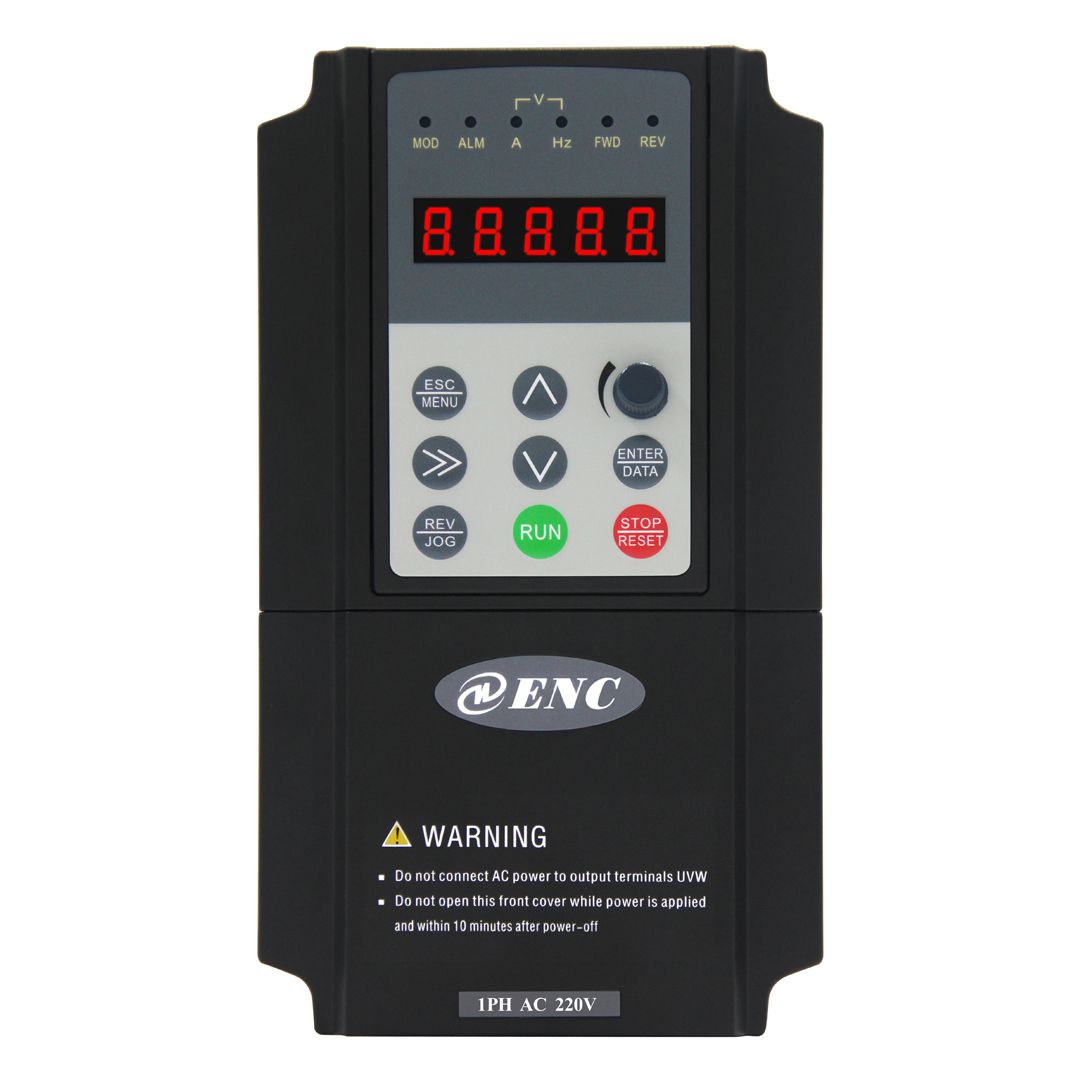

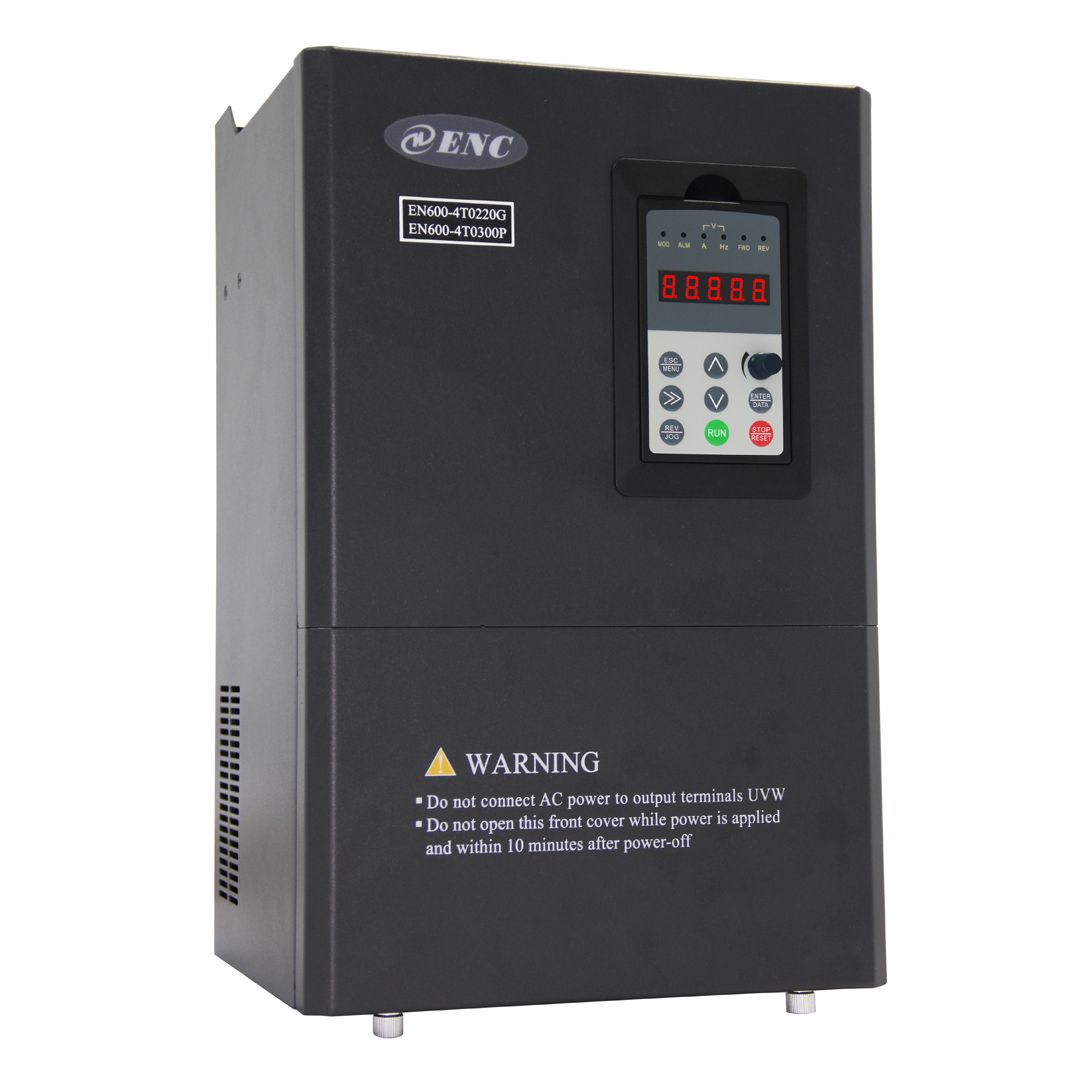

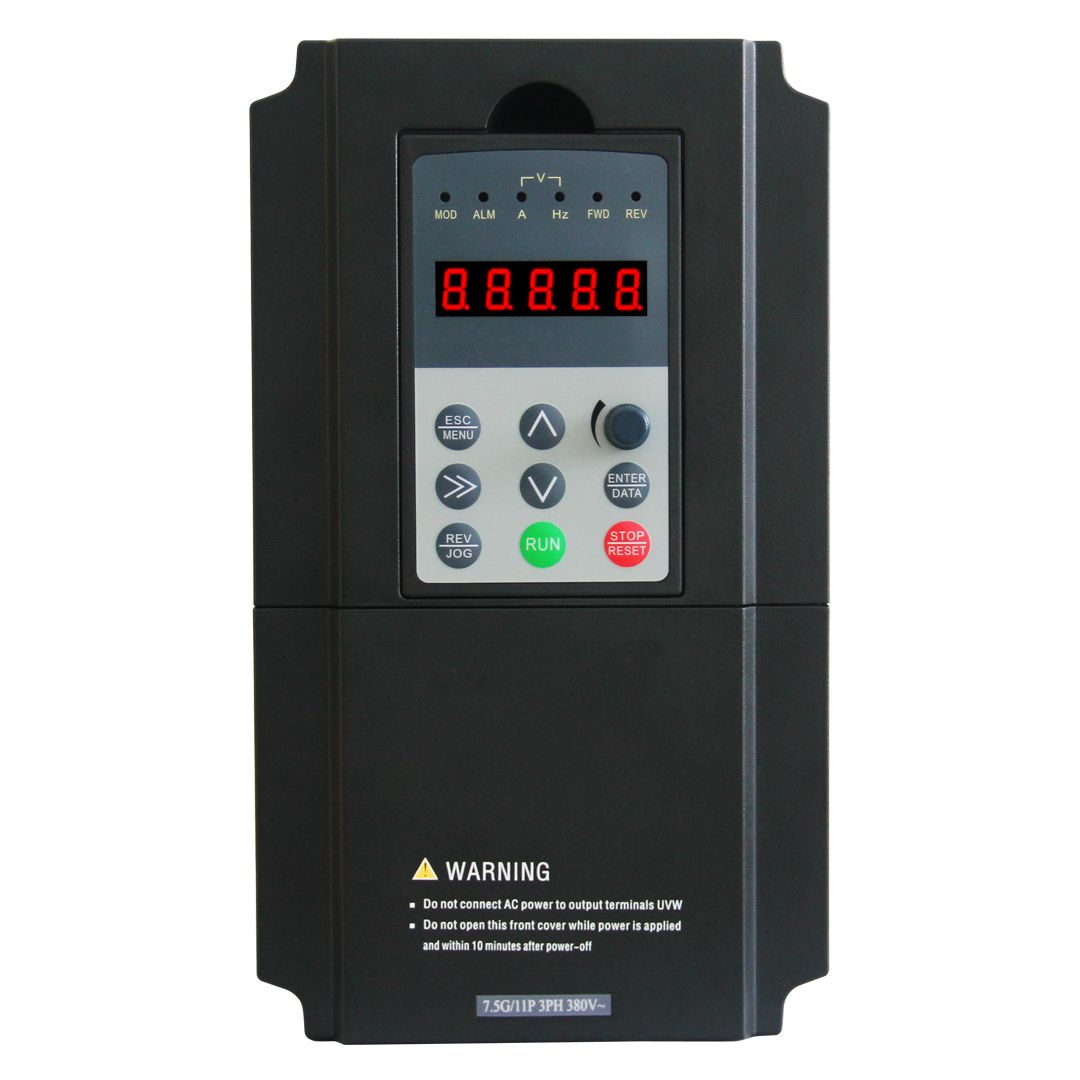

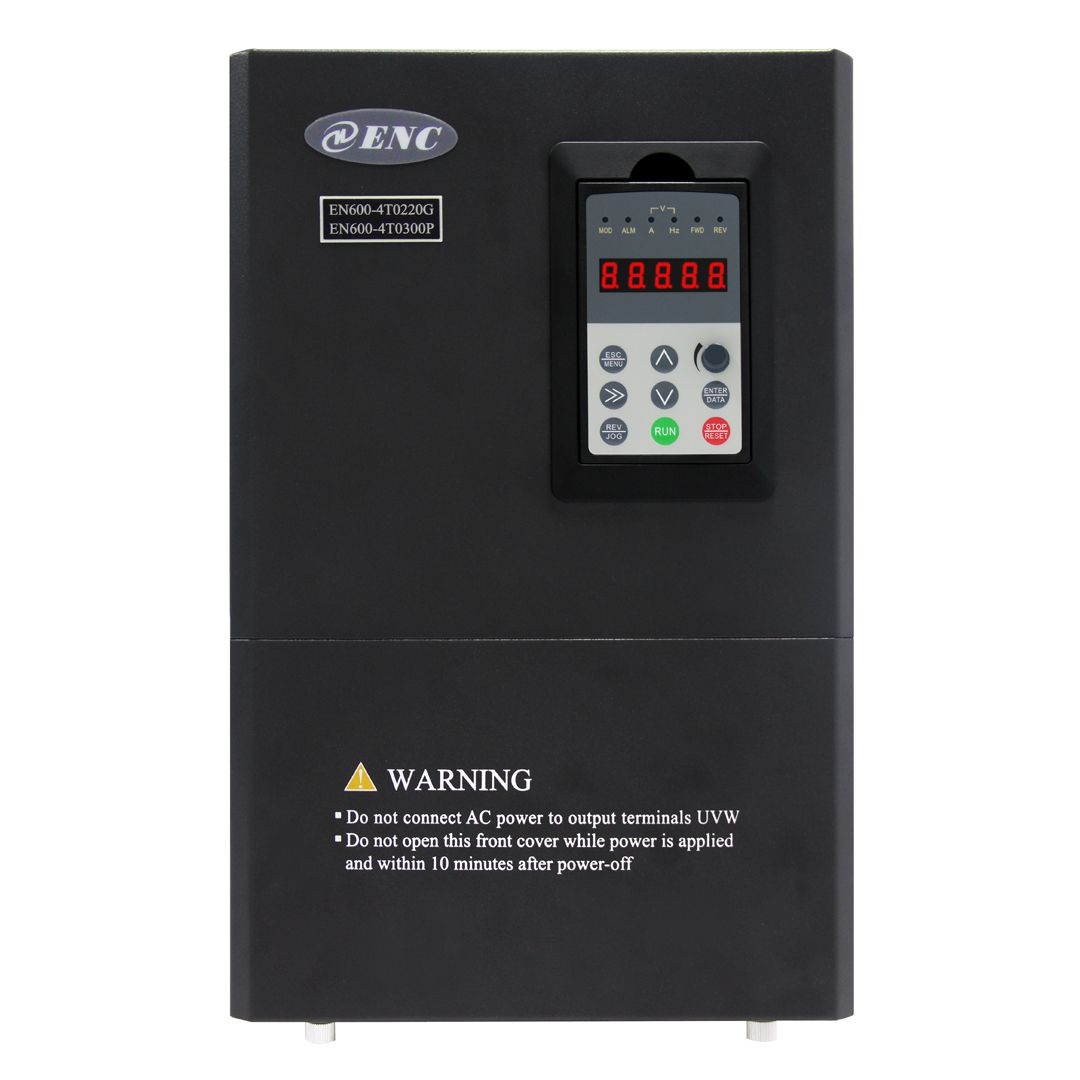

Keypad

LED display

The parameters like setting frequency, output frequency,output voltage,output current can be displayed

Lock the button

Lock all or part of the buttons.

Protection function

Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection, relay protection, terminal protection and non stop protection when power off.

Ambient

Use ambient

Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.

Altitude

Less than 1000 meters   。  ( increase every 1000m above 1000m, de-rated 10%)

Ambient temperature

-10 ° C to +40° C (de-rated if the ambient temperature is

between 40 ° C and 50° C)

Ambient humidity

Less than 95%RH   ，  without condenses

vibration

Smaller than5.9m/s 2 (0.6g)

Storage temperature

-40   ℃～  +70   ℃

Structure

Defending grade

IP20

Cooling mode

Intelligent air cooling

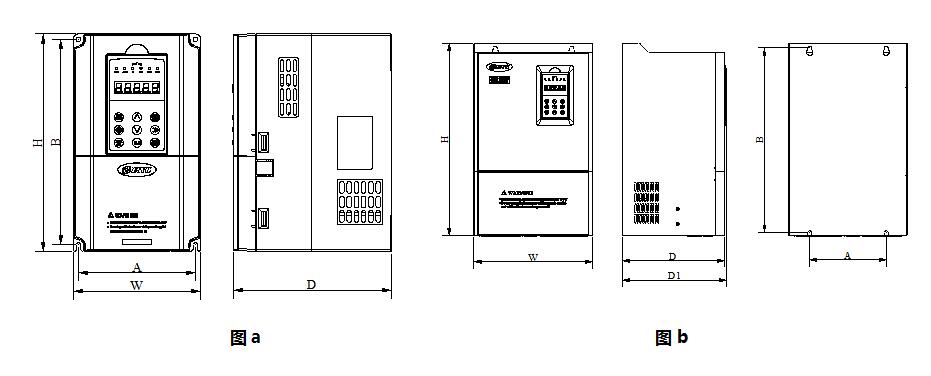

Mounting mode

Wall hanging and cabinet
